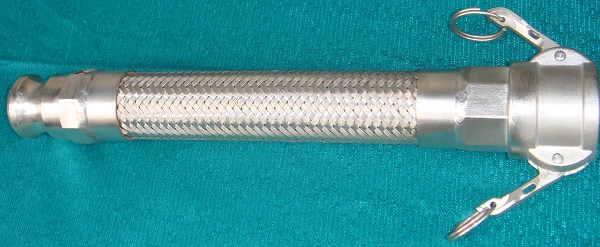

Flexible metal hose C-220

C-220

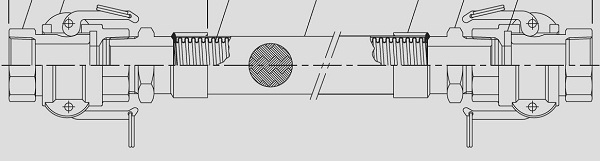

A hose with cam-lock end

-Connection and disconnection of the hose is easy.

-To disconnect the hose,pushing up the lever on the coupling is sufficient.

NOMINAL DIAMETER : 6A ÷100A.

STANDARD LENGTH : 200,300,400,500,600,800,1000mm.

-Orther length is available on request.

COUPLING MATERIALS : Stainless Steel..Bronz Brass and Alminium.

-The standard material of the packing of the coupling is Buna N.

-The packing is also available in materials such as fluoroplastics.

- Regarding connecting fittings,units equipped with a cylindrical nipple fitting are available in addition to the hexagonal nipple shown above.

APPLICATION:

-It is application for the alignment.

-Absorption of heart contraction and elongation

SSH1:SINGLE BRAID SSH2:DOUBLE BRAID

Kích thước danh nghĩa Nominal diameter mm inch		Loại ống (Hose Type)	Áp suất làm việc lớn nhất tại 20⁰C (Maximum working pressure at 20⁰C) Bar	Áp suất thử lớn nhất tại 20⁰C (Maximum test pressure at 20⁰C) Bar	Nhiệt độ làm việc lớn nhất Maximum working Temperatuer		Bán kính cong nhỏ nhất (Minimum Bend radius flexing) mm inch		Đường kính ngoài danh nghĩa (Nominal O.D)
6	1/4	SSH 1 SSH 2	163 167	207 250	350⁰C	100 100	4 4	11.0 12.4	0.44 0.50
10	3/8	SSH 1 SSH 2	72 138	154 207	350⁰C	125 125	5 5	16.0 17.3	0.56 0.69
12	½	SSH 1 SSH 2	46 103	108 154	350⁰C	125 125	5 5	20.0 21.4	0.80 0.86
20	3/4	SSH 1 SSH 2	40 72	69 108	350⁰C	150 150	6 6	27.0 29.1	1.08 1.16
25	1	SSH 1 SSH 2	34 65	60 98	350⁰C	175 175	7 7	34.5 36.6	1.38 1.46
32	1 1/4	SSH 1 SSH 2	31 46	51 69	350⁰C	200 200	8 8	43.0 45.2	1.72 1.81
40	1 1/2	SSH 1 SSH 2	27 40	46 60	350⁰C	250 250	10 10	50.0 52.1	2.00 2.08
50	2	SSH 1 SSH 2	18 34	40 51	350⁰C	350 350	14 14	64.0 66.1	2.56 2.64
65	2 1/2	SSH 1 SSH 2	10 31	27 46	350⁰C	500 500	20 20	88.5 90.7	3.54 3.63
80	3	SSH 1 SSH 2	10 27	27 40	350⁰C	525 525	21 21	102.0 105.0	4.08 4.20
100	4	SSH 1 SSH 2	10 18	27 27	350⁰C	625 625	25 25	130.0 132.0	5.20 5.28
