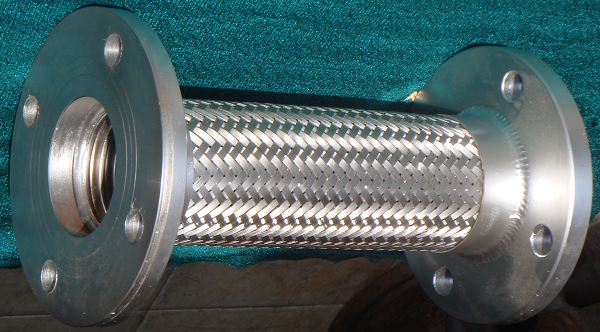

Flexible metal hose FL-100

Flexible metal hose FL-100

FL-100


- Flange products made to order - Manufacture of short face length products has become possible by the use of the flange collar. ¨NOMINAL DIAMETER : 12A ÷350A. ¨STANDARD LENGTH : 200,300,400,500,600,800,1000mm. -Other length is available on request. ¨STANDARD FITTING: JIS 10K, ANSI 150, DIN, . . . ¨FITTING MATERIALS:SS400 , INOX 304 ¨APPLICATION: -It is application for alignment. -Absorption of heat contraction and elongation - SSH1: Single braid - SSH2: Double braid

Kích thước danh nghĩa Nominal diameter mm inch		Loại ống (Hose Type)	Áp suất làm việc lớn nhất tại 20⁰C (Maximum working pressure at 20⁰C) Bar	Áp suất thử lớn nhất tại 20⁰C (Maximum test pressure at 20⁰C) Bar	Nhiệt độ làm việc lớn nhất Maximum working Temperatuer	Bán kính cong nhỏ nhất (Minimum Bend radius flexing) mm inch		Đường kính ngoài danh nghĩa (Nominal O.D) mm inch
12	1/2	SSH 1 SSH 2	46 103	108 154	350⁰C	125 125	5 5	20.0 21.4	0.80 0.86
20	3/4	SSH 1 SSH 2	40 72	69 108	350⁰C	150 150	6 6	27.0 29.1	1.08 1.16
25	1	SSH 1 SSH 2	34 65	60 98	350⁰C	175 175	7 7	34.5 36.6	1.38 1.46
32	1 1/4	SSH 1 SSH 2	31 46	51 69	350⁰C	200 200	8 8	43.0 45.2	1.72 1.81
40	1 1/2	SSH 1 SSH 2	27 40	46 60	350⁰C	250 250	10 10	50.0 52.1	2.00 2.08
50	2	SSH 1 SSH 2	18 34	40 51	350⁰C	350 350	14 14	64.0 66.1	2.56 2.64
65	2 1/2	SSH 1 SSH 2	10 31	27 46	350⁰C	500 500	20 20	88.5 90.7	3.54 3.63
80	3	SSH 1 SSH 2	10 27	27 40	350⁰C	525 525	21 21	102.0 105.0	4.08 4.20
100	4	SSH 1 SSH 2	10 18	27 27	350⁰C	625 625	25 25	130.0 132.0	5.20 5.28
125	5	SSH 1 SSH 2	10 16	24 24	350⁰C	750 750	30 30	156 159	6.24 6.36
150	6	SSH 1 SSH 2	8 14	21 21	350⁰C	900 900	36 36	183 188	7.32 7.52
200	8	SSH 1 SSH 2	8 10	15 15	350⁰C	1020 1020	40 40	238 240	9.52 9.60
250	10	SSH 1 SSH 2	6 10	15 15	350⁰C	1220 1220	48 48	291 296.4	11.64 11.86
300	12	SSH 1 SSH 2	6 10	15 15	350⁰C	2900 2900	116 116	343 348	1372 13.92
350	14	SSH 1 SSH 2	6 10	15 15	350⁰C	2950 2950	118 118	384 389	15.36 15.56
